Array1D Class Reference

#include <Array_DataStruct.h>

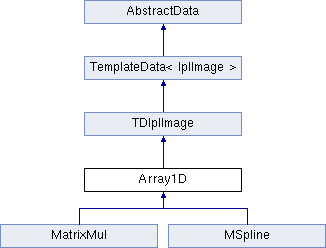

Inheritance diagram for Array1D:

List of all members.

Public Member Functions
	Array1D (std::string name="Array1D", const DataSize &size=DataSize(), AbstractData *sourceData=NULL)
	Array1D (const AbstractData *creator, std::string name="Array1D", const DataSize &size=DataSize(), AbstractData *sourceData=NULL)
	Array1D (const Array1D &copyFrom)
virtual	~Array1D ()
Array1D &	operator= (const Array1D &copyFrom)
std::strstream &	operator>> (std::strstream &s)
virtual Array1D *	duplicate ()
virtual int	allocElem (int index=-1, int *options=NULL)
virtual int	freeElem (int index=-1, int *options=NULL)
	virtual int allocElem(int index = -1, int* options = NULL);
virtual int	resizeElem (const DataSize &newSize, int matrIndex=0)
virtual int	resize (int newNumElements)
virtual int	loadFrameAsText (const std::string &filename, int *numLoaded=0, const int *options=0)
virtual int	saveFrameAsText (const std::string &filename, const int *options=0)
virtual int	loadFrame (const std::string &filename, int *numLoaded=0, const int *options=0)
virtual int	loadVars (std::ifstream &stream, const int *options=0)
virtual int	saveVars (std::ofstream &stream, const int *options=0)
virtual int	loadVarsAsText (std::ifstream &stream, const int *options=0)
virtual int	saveVarsAsText (std::ofstream &stream, const int *options=0)
virtual int	loadSetData (IplImage *ptr=NULL)
virtual int	initObject ()
virtual int	allocateNewFrame (void *sizeData=NULL)
virtual int	deleteLastFrame ()
virtual int	setCurrentFrame (int frameindex)
unsigned int	size ()
float &	operator() (int x, int y=0)
float &	operator() (int x, int y, int channel)
float	getValue (int x, int y=0)
void	setValue (int x, int y, float val)
virtual Selection	getSelection (int x, int y=0)
float *	getDataPtr (int y=0)
virtual int	copyToInt (int *array, int y=0, int xOffset=0)
virtual int	copyToFloat (float *array, int y=0, int xOffset=0)
virtual int	extendData (int extType=ARRAY_REPLICATE, int y=-1)
virtual int	copyFrom (ChanImage *source, SimpleData &options=vpSimpleData, int frame=CURR_FR)
virtual int	copyFrom (IPLImage *source, SimpleData &options=vpSimpleData, int frame=CURR_FR)
virtual int	copyFrom (AbstractImage *source, SimpleData &options=vpSimpleData, int frame=CURR_FR)
virtual int	copyFrom (IplImage *source, SimpleData &options=vpSimpleData, int frame=CURR_FR)
virtual int	copyFrom (AbstractData *source, SimpleData &options=vpSimpleData, int frame=CURR_FR)
virtual int	copyFrom (CvMat *source, SimpleData &options=vpSimpleData, int frame=CURR_FR)
virtual int	copyTo (ChanImage *dest, SimpleData &options=vpSimpleData, int frame=CURR_FR)
virtual int	copyTo (IPLImage *dest, SimpleData &options=vpSimpleData, int frame=CURR_FR)
virtual int	copyTo (AbstractImage *dest, SimpleData &options=vpSimpleData, int frame=CURR_FR)
virtual int	copyTo (IplImage *dest, SimpleData &options=vpSimpleData, int frame=CURR_FR)
virtual int	copyTo (AbstractData *dest, SimpleData &options=vpSimpleData, int frame=CURR_FR)
virtual int	copyTo (CvMat *dest, SimpleData &options=vpSimpleData, int frame=CURR_FR)
IplImage *	getIplImage ()
virtual IplImage *	img (int frame)
virtual IplImage *	img (int frame=CURR_FR, int channel=0)
virtual CvMat	mat (int startline=-1, int endline=0, int dX=0)
virtual CvMat	matLine (int startline=-1, int channel=0, int endline=0)
CvMat	row (int row_index, int channel=0)
CvMat	col (int col_index, int channel=0)
virtual CvMat	getCvMat (const Selection &lines=SEL_ALL, int dX=0)
virtual CvMat	getSubRect (const CvRect &selection)
virtual int	show (const int *options=0)
Public Attributes
IplImage *	dataPtr
CvScalar	startValue
int *	show_colors
int *	show_options
Protected Attributes
CvRect	Array1D_selection
CvMat	Array1D_subarr
CvMat	Array1D_stub
CvMat *	Array1D_mat

---

Constructor & Destructor Documentation

Array1D::Array1D	(	std::string	name = "Array1D",
		const DataSize &	size = DataSize(),
		AbstractData *	sourceData = NULL
	)

Array1D::Array1D	(	const AbstractData *	creator,
		std::string	name = "Array1D",
		const DataSize &	size = DataSize(),
		AbstractData *	sourceData = NULL
	)

Array1D::Array1D

(

const Array1D &

copyFrom

)

Array1D::~Array1D

(

)

[virtual]

---

Member Function Documentation

int Array1D::allocateNewFrame

(

void *

sizeData = NULL

)

[virtual]

Reimplemented from TemplateData< IplImage >.

Reimplemented in MSpline.

int Array1D::allocElem	(	int	index = -1,
		int *	options = NULL
	)		[virtual]

Reimplemented from TDIplImage.

CvMat Array1D::col	(	int	col_index,
		int	channel = 0
	)

int Array1D::copyFrom	(	AbstractImage *	source,
		SimpleData &	options = vpSimpleData,
		int	frame = CURR_FR
	)		[virtual]

int Array1D::copyFrom	(	IplImage *	source,
		SimpleData &	options = vpSimpleData,
		int	frame = CURR_FR
	)		[virtual]

int Array1D::copyFrom	(	AbstractData *	source,
		SimpleData &	options = vpSimpleData,
		int	frame = CURR_FR
	)		[virtual]

int Array1D::copyFrom	(	CvMat *	source,
		SimpleData &	options = vpSimpleData,
		int	frame = CURR_FR
	)		[virtual]

int Array1D::copyFrom	(	ChanImage *	source,
		SimpleData &	options = vpSimpleData,
		int	frame = CURR_FR
	)		[virtual]

int Array1D::copyFrom	(	IPLImage *	source,
		SimpleData &	options = vpSimpleData,
		int	frame = CURR_FR
	)		[virtual]

int Array1D::copyTo	(	ChanImage *	dest,
		SimpleData &	options = vpSimpleData,
		int	frame = CURR_FR
	)		[virtual]

int Array1D::copyTo	(	IPLImage *	dest,
		SimpleData &	options = vpSimpleData,
		int	frame = CURR_FR
	)		[virtual]

int Array1D::copyTo	(	AbstractImage *	dest,
		SimpleData &	options = vpSimpleData,
		int	frame = CURR_FR
	)		[virtual]

int Array1D::copyTo	(	IplImage *	dest,
		SimpleData &	options = vpSimpleData,
		int	frame = CURR_FR
	)		[virtual]

int Array1D::copyTo	(	AbstractData *	dest,
		SimpleData &	options = vpSimpleData,
		int	frame = CURR_FR
	)		[virtual]

int Array1D::copyTo	(	CvMat *	dest,
		SimpleData &	options = vpSimpleData,
		int	frame = CURR_FR
	)		[virtual]

int Array1D::copyToFloat	(	float *	array,
		int	y = 0,
		int	xOffset = 0
	)		[virtual]

int Array1D::copyToInt	(	int *	array,
		int	y = 0,
		int	xOffset = 0
	)		[virtual]

int Array1D::deleteLastFrame

(

)

[virtual]

Reimplemented from TemplateData< IplImage >.

virtual Array1D* Array1D::duplicate

(

)

[inline, virtual]

Reimplemented from TDIplImage.

Reimplemented in MSpline, and MatrixMul.

int Array1D::extendData	(	int	extType = ARRAY_REPLICATE,
		int	y = -1
	)		[virtual]

Reimplemented in MSpline.

int Array1D::freeElem	(	int	index = -1,
		int *	options = NULL
	)		[virtual]

virtual int allocElem(int index = -1, int* options = NULL);

Reimplemented from TDIplImage.

CvMat Array1D::getCvMat	(	const Selection &	lines = SEL_ALL,
		int	dX = 0
	)		[virtual]

Reimplemented in MSpline.

float* Array1D::getDataPtr

(

int

y = 0

)

[inline]

IplImage* Array1D::getIplImage

(

)

[inline]

Selection Array1D::getSelection	(	int	x,
		int	y = 0
	)		[virtual]

Reimplemented in MSpline.

CvMat Array1D::getSubRect

(

const CvRect &

selection

)

[virtual]

float Array1D::getValue	(	int	x,
		int	y = 0
	)		[inline]

IplImage * Array1D::img

(

int

frame

)

[virtual]

IplImage * Array1D::img	(	int	frame = CURR_FR,
		int	channel = 0
	)		[virtual]

int Array1D::initObject

(

)

[virtual]

int Array1D::loadFrame	(	const std::string &	filename,
		int *	numLoaded = 0,
		const int *	options = 0
	)		[virtual]

Reimplemented from TemplateData< IplImage >.

int Array1D::loadFrameAsText	(	const std::string &	filename,
		int *	numLoaded = 0,
		const int *	options = 0
	)		[virtual]

Reimplemented from TemplateData< IplImage >.

int Array1D::loadSetData

(

IplImage *

ptr = NULL

)

[virtual]

Reimplemented from TDIplImage.

Reimplemented in MSpline.

int Array1D::loadVars	(	std::ifstream &	stream,
		const int *	options = 0
	)		[virtual]

Reimplemented from TemplateData< IplImage >.

Reimplemented in MSpline.

int Array1D::loadVarsAsText	(	std::ifstream &	stream,
		const int *	options = 0
	)		[virtual]

Reimplemented from TemplateData< IplImage >.

Reimplemented in MSpline.

CvMat Array1D::mat	(	int	startline = -1,
		int	endline = 0,
		int	dX = 0
	)		[virtual]

Reimplemented in MSpline.

CvMat Array1D::matLine	(	int	startline = -1,
		int	channel = 0,
		int	endline = 0
	)		[virtual]

float& Array1D::operator()	(	int	x,
		int	y = 0
	)		[inline]

Reimplemented in MSpline.

float& Array1D::operator()	(	int	x,
		int	y,
		int	channel
	)		[inline]

Array1D & Array1D::operator=

(

const Array1D &

copyFrom

)

std::strstream & Array1D::operator>>

(

std::strstream &

s

)

Reimplemented from AbstractData.

int Array1D::resize

(

int

newNumElements

)

[virtual]

Reimplemented from TemplateData< IplImage >.

int Array1D::resizeElem	(	const DataSize &	newSize,
		int	matrIndex = 0
	)		[virtual]

CvMat Array1D::row	(	int	row_index,
		int	channel = 0
	)

int Array1D::saveFrameAsText	(	const std::string &	filename,
		const int *	options = 0
	)		[virtual]

Reimplemented from TemplateData< IplImage >.

int Array1D::saveVars	(	std::ofstream &	stream,
		const int *	options = 0
	)		[virtual]

Reimplemented from TemplateData< IplImage >.

Reimplemented in MSpline.

int Array1D::saveVarsAsText	(	std::ofstream &	stream,
		const int *	options = 0
	)		[virtual]

Reimplemented from TemplateData< IplImage >.

Reimplemented in MSpline.

int Array1D::setCurrentFrame

(

int

frameindex

)

[virtual]

Reimplemented from TemplateData< IplImage >.

Reimplemented in MSpline.

void Array1D::setValue	(	int	x,
		int	y,
		float	val
	)		[inline]

int Array1D::show

(

const int *

options = 0

)

[virtual]

Reimplemented from TemplateData< IplImage >.

Reimplemented in MSpline.

unsigned int Array1D::size

(

)

[inline]

Reimplemented from TemplateData< IplImage >.

Reimplemented in MSpline.

---

Member Data Documentation

CvMat * Array1D::Array1D_mat [protected]

CvRect Array1D::Array1D_selection [protected]

CvMat Array1D::Array1D_stub [protected]

CvMat Array1D::Array1D_subarr [protected]

IplImage* Array1D::dataPtr

int* Array1D::show_colors

int* Array1D::show_options

CvScalar Array1D::startValue

---

The documentation for this class was generated from the following files:

• D:/J_PROGRAMI/SPLINEPROJECT/CODE2/System_Data/Array_DataStruct.h
• D:/J_PROGRAMI/SPLINEPROJECT/CODE2/System_Data/Array_DataStruct.cpp
